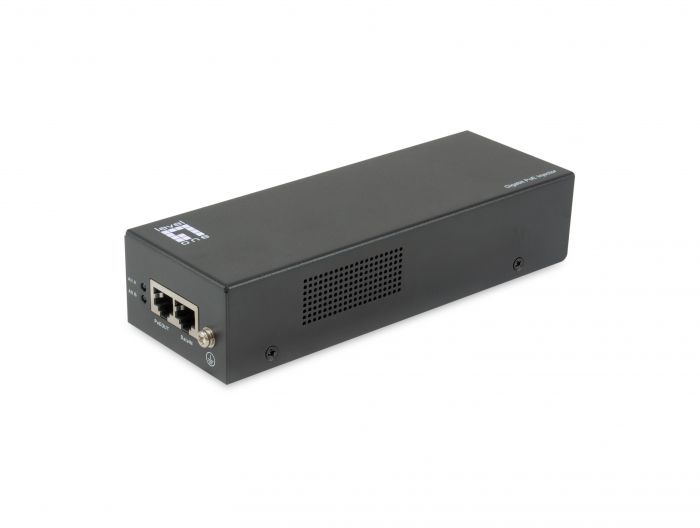

POI-5003 Gigabit PoE Injector, 802.3 af/at/bt, 90W
Model Number.
POI-5003
SKU
55207103101
The POI-5003 is a single port, high-power 90W PoE PSE solution for remote PoE PD devices. Generating up to 90W through 8 pins, POI-5003 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, lighting, panel display for digital signage and video-phones. It complies to IEEE 802.3bt PoE standards to deliver 90W on both end-point and midspan pairs with a total power of 90W PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
10/100/1000Mbps wire speed transmission and reception Output power 90W, |
| Miscellaneous. | |
| Injector Port Type. | Single Port |
| Grade. | Commercial |
| System Specifications. | |
| Data Rate. | 1Gbps |
| Indicators. |
Power Link/Act Mode A/B |
| Mount. | Ceiling mount |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) |
| Power supply included. | Yes |
| Standard. | IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Others. | |
| Approval and Compliance. | CE/FCC , 10/700us 6kV (IEC 61000-4-5) |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | 0°C ~ 40°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | 0°C ~ 70°C |
| Package Contents. |
POI-5003 Power Cord |
| General. | |
| Color. | Black |
| EAN. | 4015867231135 |
| Model Number. | POI-5003 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 179.5x65.3x40 |
| Product weight (kg). | 0.75 |
