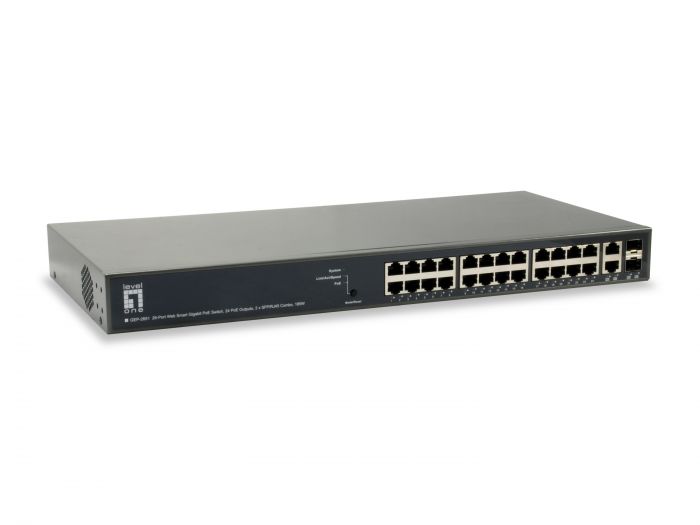

GEP-2651 TURING 26-Port Web Smart Gigabit PoE Switch, 2 x SFP/RJ45 Combo, 802.3af/at PoE, 24-Port PoE Outputs, 185W Power Budget
Model Number.
GEP-2651
SKU
59924703
GEP-2651 Web Smart Gigabit PoE Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GEP-2651 delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports and 2 Combo GbE RJ45/SFP ports. GEP-2651 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2651 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
| Port Configuration | |
|---|---|
| Gigabit RJ45/SFP combo | 2 |
| Gigabit RJ45 | 24 |
| Gigabit SFP | 2 |
| 802.3af/at PoE | 24 |
| Logistics Data. | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
● Device Management System (DMS) ● 802.1Q tag-based VLAN - up to 256 VLANs and 4096 VLAN IDs ● Port-based VLAN ● MAC-based VLAN ● Q-iN-Q (double tag) VLAN ● DHCP Client ● Native IPv6 and IPv4/IPv6 Dual Stack ● IPv6 host mode; ● IPv6 stateless address auto-configuration ● Duplicate Address Detection (DAD) ● ICMP v6 ● IGMP v1/v2/v3 snooping ● IGMP Queried ● IGMP Proxy ● IPv6 QoS Prioritize IPv6 packets in hardware ● Port Mirroring ● Many-to-One TX/RX ● QoS Class of service (CoS) ● DiffServ (DSCP) ● IEEE802.3x Flow Control ● DHCP Server |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 26.00 |
| Series. | TURING series |
| PoE Power Budget. | Total 185.00 |
| Performance 2. | |
| Switching capacity. | 52 Gbps |
| System Specifications. | |
| Power supply. | 100-240 VAC, 50-60 Hz |
| Data Rate. | 1Gbps |
| Power supply included. | Yes |
| Standard. |
● IEEE 802.3 10-BASE-T, Ethernet ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X,Gigabit Ethernet ● IEEE 802.1p Quality of Service (QoS) ● IEEE 802.1X Port-based Network Access Control (PNAC) ● IEEE 802.1Q Virtual LANs (VLANs) ● IEEE 802.1D MAC Bridges ● IEEE 802.1d Standard Spanning Tree Protocol ● IEEE 802.1s Multiple Spanning Tree (MSTP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● IEEE 802.3af Power over Ethernet (PoE) ● IEEE 802.3at Power over Ethernet Plus (PoE+) ● IEEE 802.3az Energy-Efficient Ethernet |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | 19" rack mount, Desk mount |
| Flash memory size. | 32 MB |
| RAM size. | 128 MB |
| MAC address table. | 8 K |
| Jumbo frame (KB). | 9 |
| Indicators. | System, Link/Act/Speed, PoE |
| Backplane (Gbps). | 52 |
| Others. | |
| Approval and Compliance. |
● CE ● FCC Part 15 Class A ● ROHS ● UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General Requirements) ● CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment - Safety - Part 1: General Requirements) |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -20°C ~ 70°C |
| Package Contents. |
● GEP-2651 ● Power Cord ● 19" Rack Mount Kit ● Quick Installation Guide ● Resource CD (User Manual, QIG) |
| General. | |
| Color. | Grey |
| EAN. | 4015867198957 |
| Model Number. | GEP-2651 |
| Physical Specifications. | |
| Product weight (kg). | 3.1 |
| Dimensions (W x D x H). | 442 x 211 x 44 mm |
